需求：
用datax同步mysql： 192.168.236.134中test1库的user表到192.168.236.136中test1库的user表
步骤：

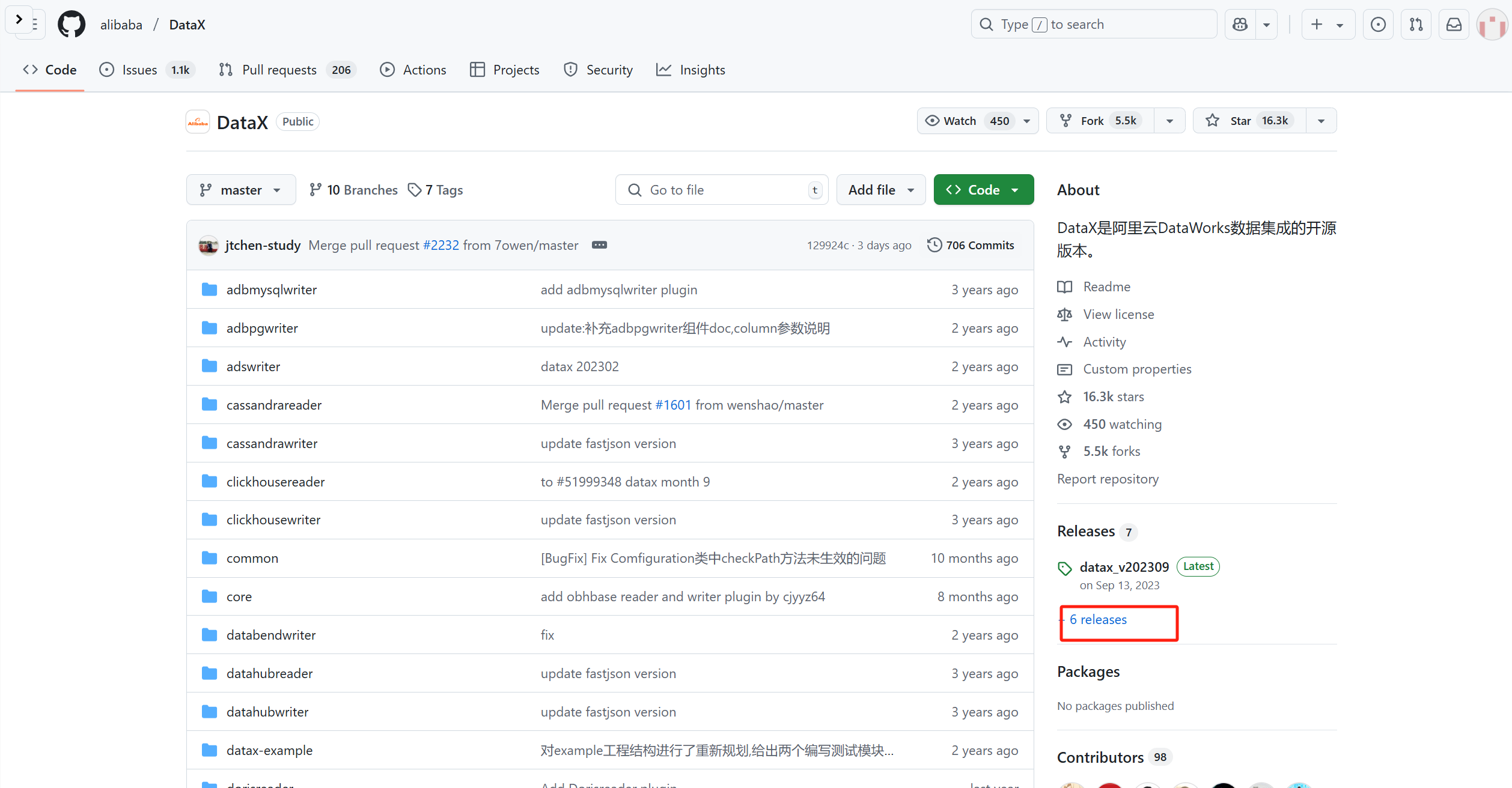

下载安装包
https://github.com/alibaba/DataX/blob/master/userGuid.md
进入引导页
https://github.com/alibaba/DataX/blob/master/userGuid.md

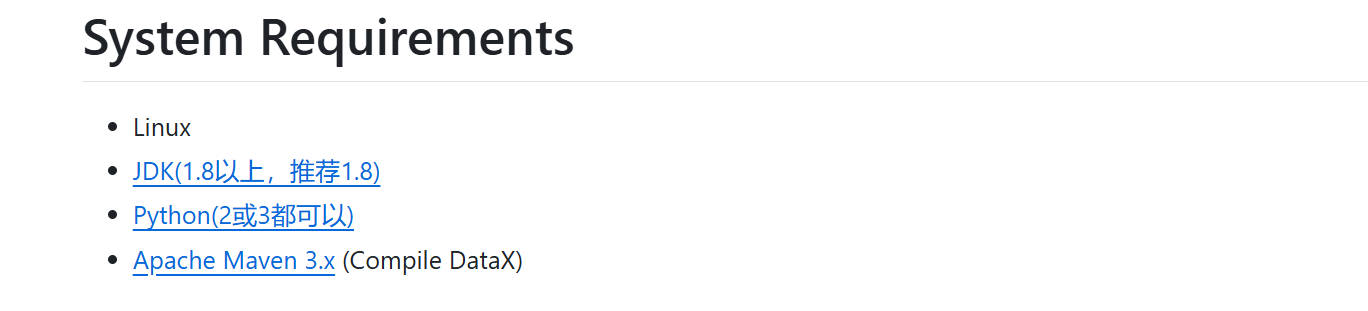

前置准备
安装jdk1.8，并配置环境变量
安装maven
yum install maven -y
安装python

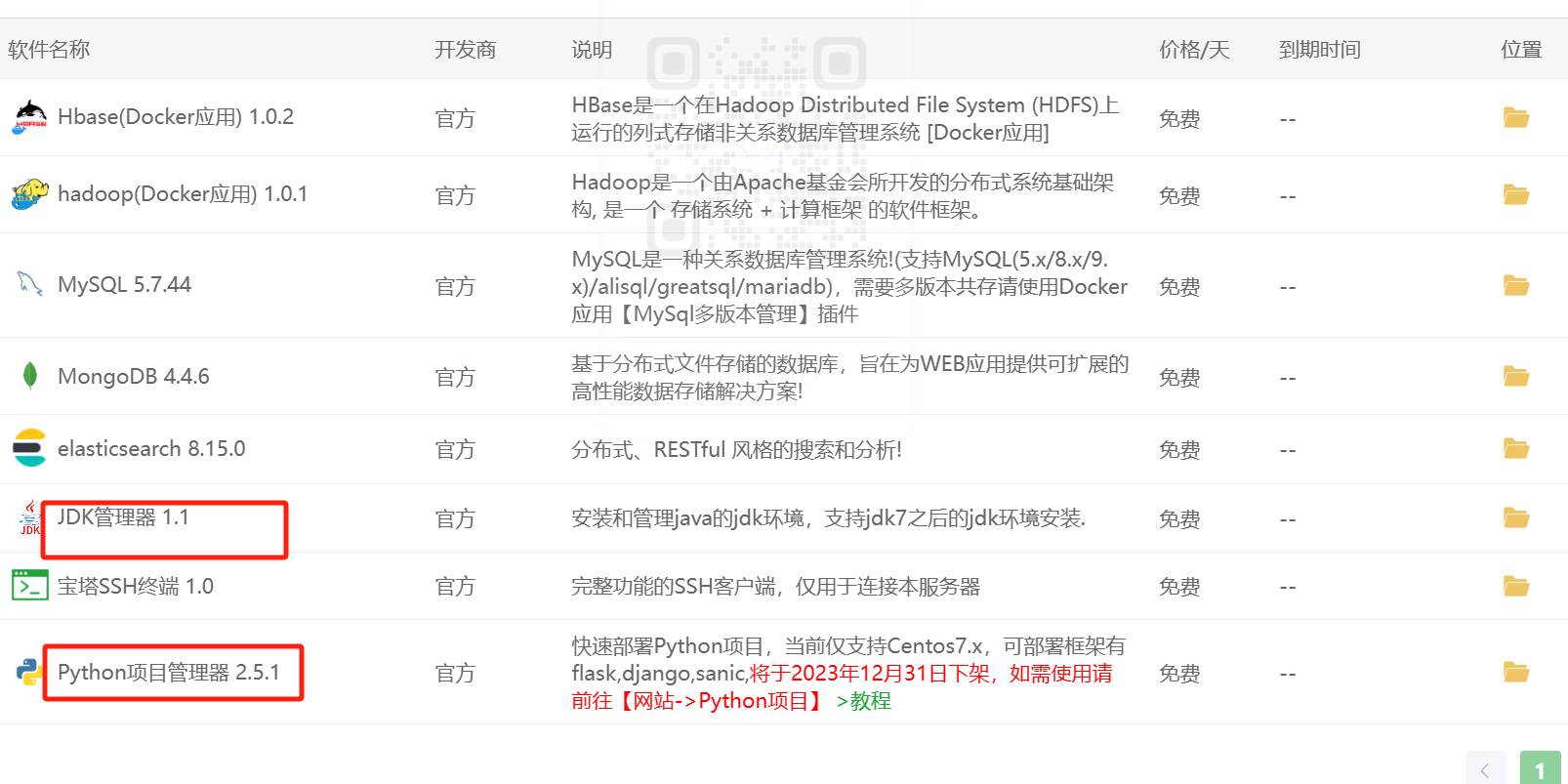

我这边直接用宝塔安装了

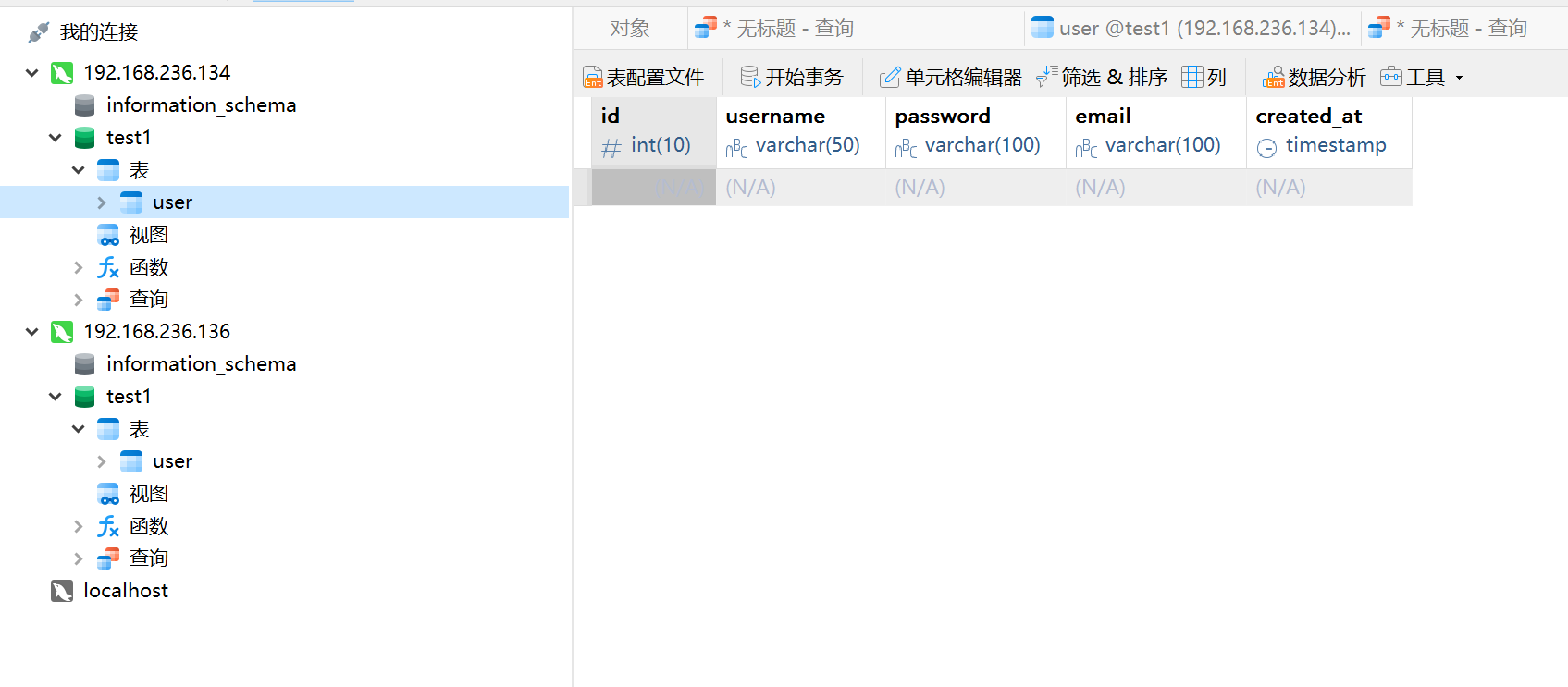

准备两个mysql
准备测试数据
CREATE TABLE IF NOT EXISTS `user` (`id` INT UNSIGNED AUTO_INCREMENT PRIMARY KEY,`username` VARCHAR(50) NOT NULL,`password` VARCHAR(100) NOT NULL,`email` VARCHAR(100) NOT NULL,`created_at` TIMESTAMP DEFAULT CURRENT_TIMESTAMP
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;
批量生成测试数据的存储过程
DELIMITER $$CREATE PROCEDURE GenerateUserTestData(IN num_records INT)
BEGINDECLARE i INT DEFAULT 1;DECLARE v_username VARCHAR(50);DECLARE v_password VARCHAR(100);DECLARE v_email VARCHAR(100);WHILE i <= num_records DO-- 生成随机用户名（如 User_12345）SET v_username = CONCAT('User_', FLOOR(10000 + RAND() * 90000));-- 生成随机密码（简化示例，实际应加密）SET v_password = CONCAT('Pass_', FLOOR(100000 + RAND() * 900000));-- 生成随机邮箱（如 user12345@example.com）SET v_email = CONCAT('user', FLOOR(10000 + RAND() * 90000), '@example.com');INSERT INTO `user` (username, password, email)VALUES (v_username, v_password, v_email);-- 每1000条提交一次，避免事务过大IF i % 1000 = 0 THENCOMMIT;END IF;SET i = i + 1;END WHILE;
END$$DELIMITER ;
-- 生成100条测试数据
CALL GenerateUserTestData(100);
准备datax同步脚本
可使用DeepSeek或者qwen.ai 生成
提示词如下：
datax已经安装好了。现在我需要使用datax将如下配置的mysql
ip： 192.168.236.134
用户名：test1
密码：E7WEC4ZJnHGhHBMH
中的user表数据同步到 如下mysql中。
ip： 192.168.236.136
用户名：test1
密码：G3edhwhCSAYa82EK
得到json脚本
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"username": "test1","password": "E7WEC4ZJnHGhHBMH","connection": [{"jdbcUrl": ["jdbc:mysql://192.168.236.134:3306/数据库名"],"table": ["user"]}],"column": ["*"],"splitPk": ""}}},{"writer": {"name": "mysqlwriter","parameter": {"username": "test1","password": "G3edhwhCSAYa82EK","connection": [{"jdbcUrl": "jdbc:mysql://192.168.236.136:3306/数据库名","table": "user"}],"column": ["*"],"writeMode": "insert"}}}],"setting": {"speed": {"channel": "1"}}}
}

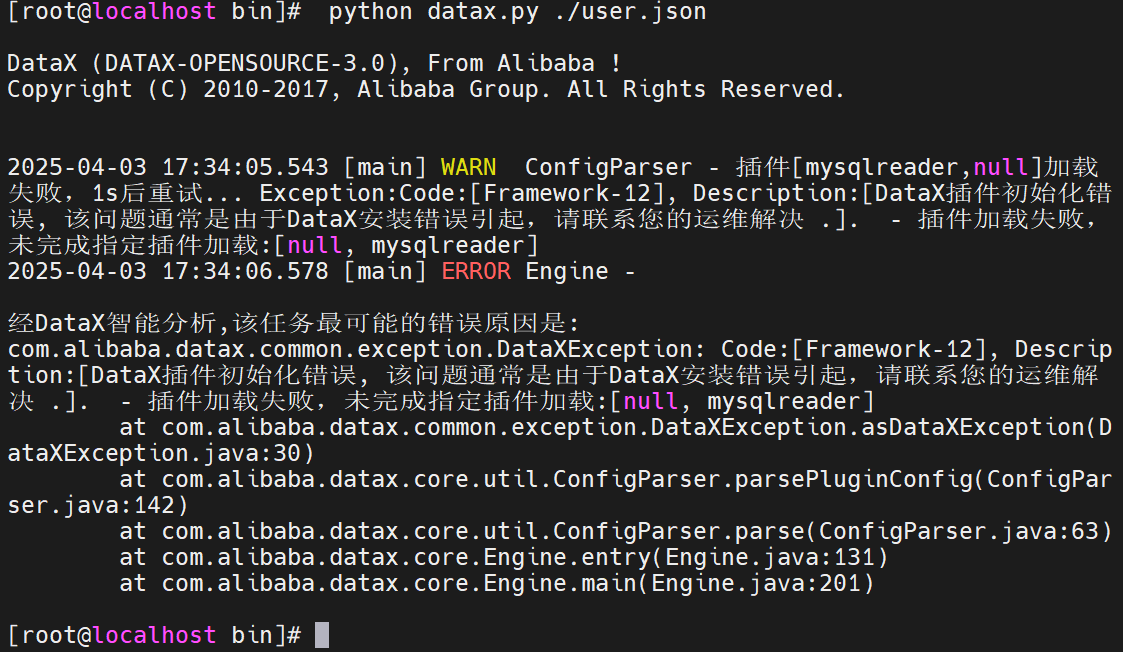

执行报错

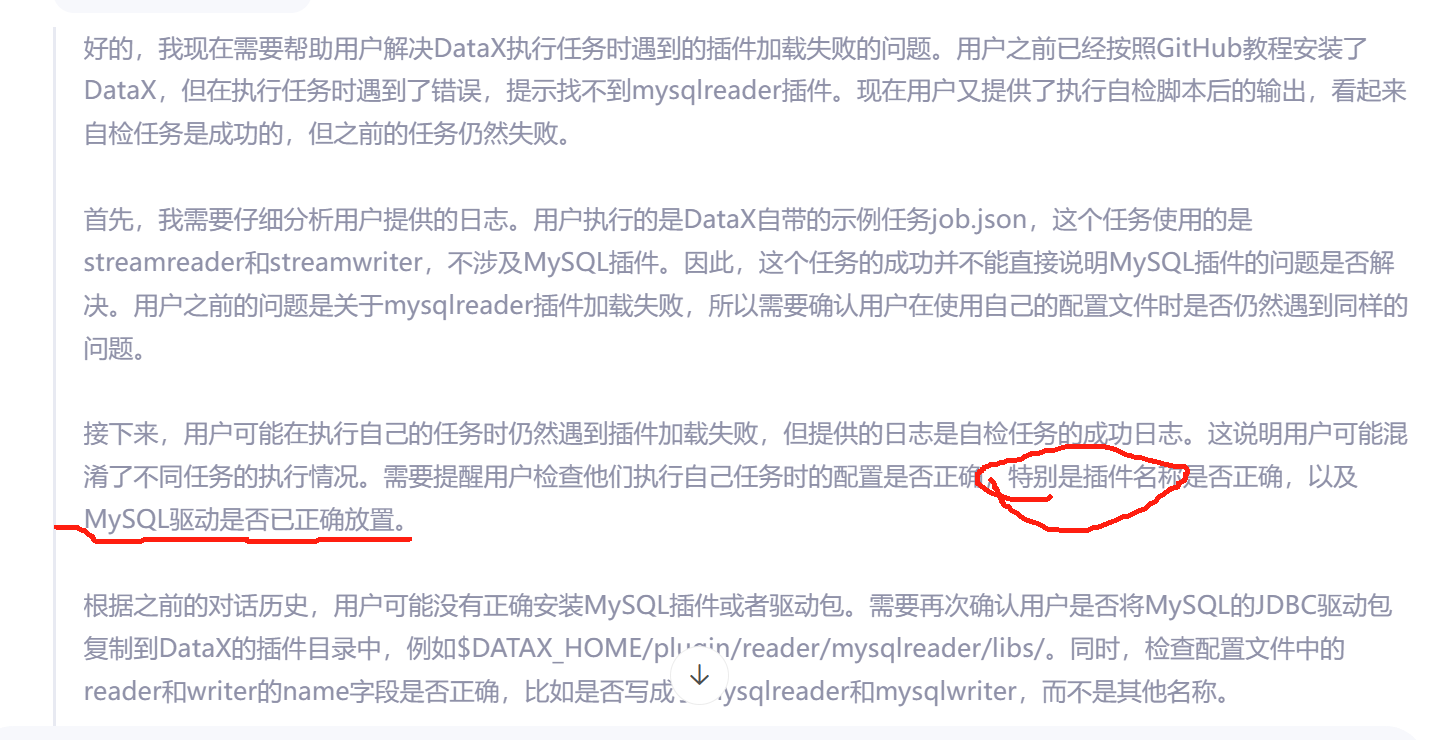

喂给千问
检测安装是否正常
验证步骤
ls $DATAX_HOME/plugin/reader/mysqlreader
应输出类似：libs、mysqlreader-0.0.1-SNAPSHOT.jar等文件
生成配置文件模板 （测试用）：
python datax.py -r mysqlreader -w mysqlwriter > test.json
编辑test.json后执行，验证是否为配置问题
若问题仍未解决，可参考
中的错误分析方法，检查日志或通过调试工具定位具体插件加载失败的原因。
根据生成模板重新配置
json格式不正确

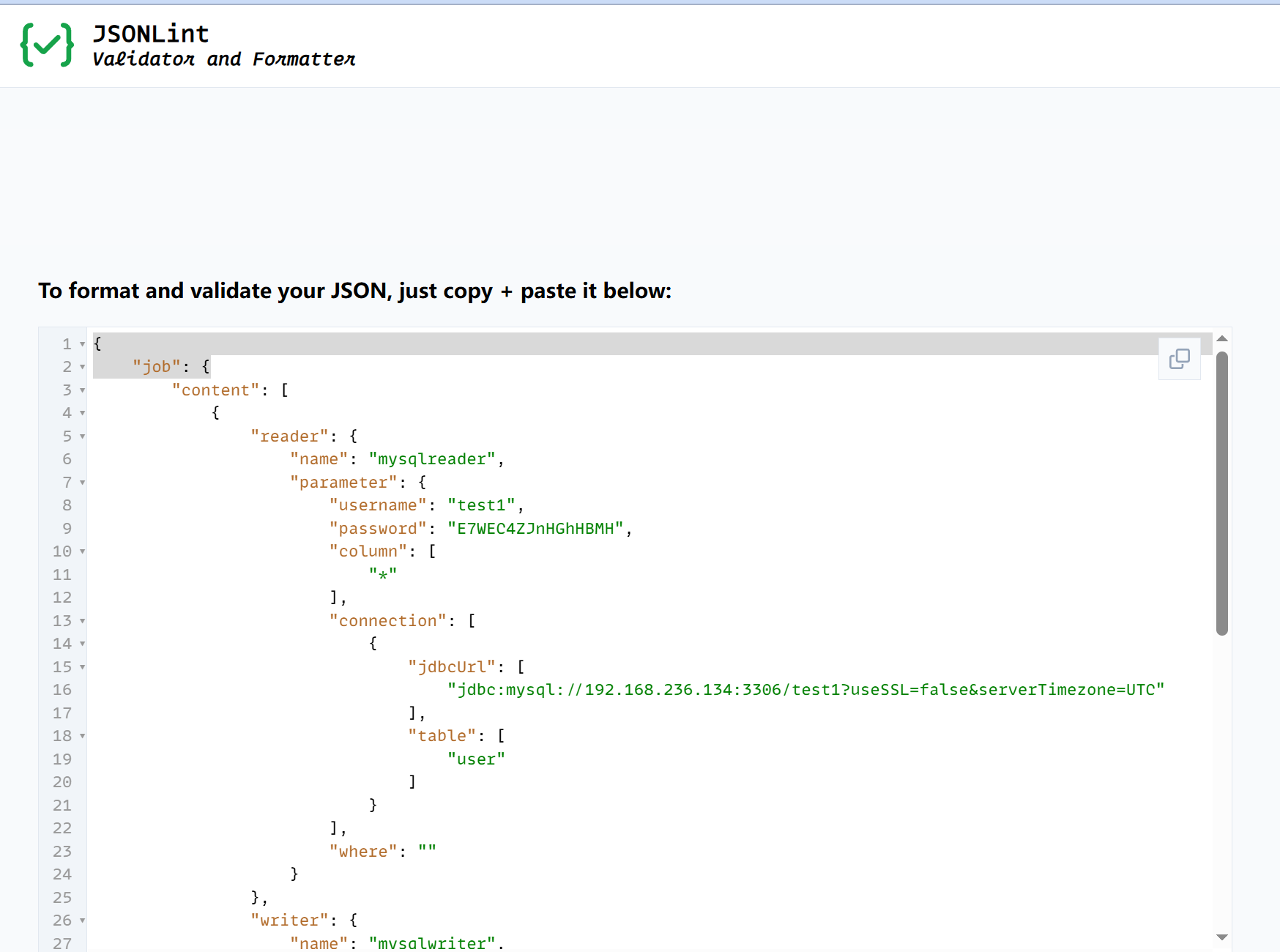

可以如下网页验证
https://jsonlint.com/?spm=a2ty_o01.29997173.0.0.1f39c9213lfeok
修改脚本
{"job": {"content": [{"reader": {"name": "mysqlreader","parameter": {"username": "test1","password": "E7WEC4ZJnHGhHBMH","column": ["*"],"connection": [{"jdbcUrl": ["jdbc:mysql://192.168.236.134:3306/test1?useSSL=false&serverTimezone=UTC"],"table": ["user1"]}]}},"writer": {"name": "mysqlwriter","parameter": {"username": "test1","password": "G3edhwhCSAYa82EK","connection": [{"jdbcUrl": "jdbc:mysql://192.168.236.136:3306/test1?useSSL=false&serverTimezone=UTC","table": ["user1"]}],"obWriteMode": "insert","column": ["*"],"preSql": [],"postSql": []}}}],"setting": {"speed": {"channel": "5"}}}
}
执行，显示如下表示成功
[root@localhost bin]# python datax.py test9.jsonDataX (DATAX-OPENSOURCE-3.0), From Alibaba !
Copyright (C) 2010-2017, Alibaba Group. All Rights Reserved.2025-04-03 19:57:24.786 [main] INFO MessageSource - JVM TimeZone: GMT+08:00, Locale: zh_CN
2025-04-03 19:57:24.788 [main] INFO MessageSource - use Locale: zh_CN timeZone: sun.util.calendar.ZoneInfo[id="GMT+08:00",offset=28800000,dstSavings=0,useDaylight=false,transitions=0,lastRule=null]
2025-04-03 19:57:24.812 [main] INFO VMInfo - VMInfo# operatingSystem class => sun.management.OperatingSystemImpl
2025-04-03 19:57:24.816 [main] INFO Engine - the machine info =>osInfo: Linux amd64 3.10.0-1160.el7.x86_64jvmInfo: Red Hat, Inc. 1.8 25.412-b08cpu num: 8totalPhysicalMemory: -0.00GfreePhysicalMemory: -0.00GmaxFileDescriptorCount: -1currentOpenFileDescriptorCount: -1GC Names [PS MarkSweep, PS Scavenge]MEMORY_NAME | allocation_size | init_sizePS Eden Space | 256.00MB | 256.00MBCode Cache | 240.00MB | 2.44MBCompressed Class Space | 1,024.00MB | 0.00MBPS Survivor Space | 42.50MB | 42.50MBPS Old Gen | 683.00MB | 683.00MBMetaspace | -0.00MB | 0.00MB2025-04-03 19:57:24.825 [main] INFO Engine -
{"content":[{"reader":{"name":"mysqlreader","parameter":{"username":"test1","password":"****************","column":["*"],"connection":[{"jdbcUrl":["jdbc:mysql://192.168.236.134:3306/test1?useSSL=false&serverTimezone=UTC"],"table":["user1"]}]}},"writer":{"name":"mysqlwriter","parameter":{"username":"test1","password":"****************","connection":[{"jdbcUrl":"jdbc:mysql://192.168.236.136:3306/test1?useSSL=false&serverTimezone=UTC","table":["user1"]}],"obWriteMode":"insert","column":["*"],"preSql":[],"postSql":[]}}}],"setting":{"speed":{"channel":"5"}}
}2025-04-03 19:57:24.839 [main] INFO PerfTrace - PerfTrace traceId=job_-1, isEnable=false
2025-04-03 19:57:24.839 [main] INFO JobContainer - DataX jobContainer starts job.
2025-04-03 19:57:24.840 [main] INFO JobContainer - Set jobId = 0
2025-04-03 19:57:25.079 [job-0] INFO OriginalConfPretreatmentUtil - Available jdbcUrl:jdbc:mysql://192.168.236.134:3306/test1?useSSL=false&serverTimezone=UTC&yearIsDateType=false&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false&rewriteBatchedStatements=true.
2025-04-03 19:57:25.080 [job-0] WARN OriginalConfPretreatmentUtil - 您的配置文件中的列配置存在一定的风险. 因为您未配置读取数据库表的列，当您的表字段个数、类型有变动时，可能影响任务正确性甚至会运行出错。请检查您的配置并作出修改.
2025-04-03 19:57:25.275 [job-0] INFO OriginalConfPretreatmentUtil - table:[user1] all columns:[
id,user_name,pass_word,email,created_at
].
2025-04-03 19:57:25.275 [job-0] WARN OriginalConfPretreatmentUtil - 您的配置文件中的列配置信息存在风险. 因为您配置的写入数据库表的列为*，当您的表字段个数、类型有变动时，可能影响任务正确性甚至会运行出错。请检查您的配置并作出修改.
2025-04-03 19:57:25.276 [job-0] INFO OriginalConfPretreatmentUtil - Write data [
INSERT INTO %s (id,user_name,pass_word,email,created_at) VALUES(?,?,?,?,?)
], which jdbcUrl like:[jdbc:mysql://192.168.236.136:3306/test1?useSSL=false&serverTimezone=UTC&yearIsDateType=false&zeroDateTimeBehavior=convertToNull&rewriteBatchedStatements=true&tinyInt1isBit=false]
2025-04-03 19:57:25.277 [job-0] INFO JobContainer - jobContainer starts to do prepare ...
2025-04-03 19:57:25.277 [job-0] INFO JobContainer - DataX Reader.Job [mysqlreader] do prepare work .
2025-04-03 19:57:25.277 [job-0] INFO JobContainer - DataX Writer.Job [mysqlwriter] do prepare work .
2025-04-03 19:57:25.277 [job-0] INFO JobContainer - jobContainer starts to do split ...
2025-04-03 19:57:25.278 [job-0] INFO JobContainer - Job set Channel-Number to 5 channels.
2025-04-03 19:57:25.280 [job-0] INFO JobContainer - DataX Reader.Job [mysqlreader] splits to [1] tasks.
2025-04-03 19:57:25.281 [job-0] INFO JobContainer - DataX Writer.Job [mysqlwriter] splits to [1] tasks.
2025-04-03 19:57:25.301 [job-0] INFO JobContainer - jobContainer starts to do schedule ...
2025-04-03 19:57:25.303 [job-0] INFO JobContainer - Scheduler starts [1] taskGroups.
2025-04-03 19:57:25.304 [job-0] INFO JobContainer - Running by standalone Mode.
2025-04-03 19:57:25.320 [taskGroup-0] INFO TaskGroupContainer - taskGroupId=[0] start [1] channels for [1] tasks.
2025-04-03 19:57:25.323 [taskGroup-0] INFO Channel - Channel set byte_speed_limit to -1, No bps activated.
2025-04-03 19:57:25.323 [taskGroup-0] INFO Channel - Channel set record_speed_limit to -1, No tps activated.
2025-04-03 19:57:25.346 [taskGroup-0] INFO TaskGroupContainer - taskGroup[0] taskId[0] attemptCount[1] is started
2025-04-03 19:57:25.445 [0-0-0-reader] INFO CommonRdbmsReader$Task - Begin to read record by Sql: [select * from user1
] jdbcUrl:[jdbc:mysql://192.168.236.134:3306/test1?useSSL=false&serverTimezone=UTC&yearIsDateType=false&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false&rewriteBatchedStatements=true].
2025-04-03 19:57:25.456 [0-0-0-reader] INFO CommonRdbmsReader$Task - Finished read record by Sql: [select * from user1
] jdbcUrl:[jdbc:mysql://192.168.236.134:3306/test1?useSSL=false&serverTimezone=UTC&yearIsDateType=false&zeroDateTimeBehavior=convertToNull&tinyInt1isBit=false&rewriteBatchedStatements=true].
2025-04-03 19:57:25.749 [taskGroup-0] INFO TaskGroupContainer - taskGroup[0] taskId[0] is successed, used[421]ms
2025-04-03 19:57:25.750 [taskGroup-0] INFO TaskGroupContainer - taskGroup[0] completed it's tasks.
2025-04-03 19:57:35.445 [job-0] INFO StandAloneJobContainerCommunicator - Total 0 records, 0 bytes | Speed 0B/s, 0 records/s | Error 0 records, 0 bytes | All Task WaitWriterTime 0.000s | All Task WaitReaderTime 0.000s | Percentage 100.00%
2025-04-03 19:57:35.445 [job-0] INFO AbstractScheduler - Scheduler accomplished all tasks.
2025-04-03 19:57:35.445 [job-0] INFO JobContainer - DataX Writer.Job [mysqlwriter] do post work.
2025-04-03 19:57:35.445 [job-0] INFO JobContainer - DataX Reader.Job [mysqlreader] do post work.
2025-04-03 19:57:35.445 [job-0] INFO JobContainer - DataX jobId [0] completed successfully.
2025-04-03 19:57:35.446 [job-0] INFO HookInvoker - No hook invoked, because base dir not exists or is a file: /usr/local/datax/hook
2025-04-03 19:57:35.447 [job-0] INFO JobContainer -[total cpu info] =>averageCpu | maxDeltaCpu | minDeltaCpu -1.00% | -1.00% | -1.00%[total gc info] =>NAME | totalGCCount | maxDeltaGCCount | minDeltaGCCount | totalGCTime | maxDeltaGCTime | minDeltaGCTimePS MarkSweep | 1 | 1 | 1 | 0.042s | 0.042s | 0.042sPS Scavenge | 1 | 1 | 1 | 0.040s | 0.040s | 0.040s2025-04-03 19:57:35.447 [job-0] INFO JobContainer - PerfTrace not enable!
2025-04-03 19:57:35.448 [job-0] INFO StandAloneJobContainerCommunicator - Total 0 records, 0 bytes | Speed 0B/s, 0 records/s | Error 0 records, 0 bytes | All Task WaitWriterTime 0.000s | All Task WaitReaderTime 0.000s | Percentage 100.00%
2025-04-03 19:57:35.449 [job-0] INFO JobContainer -
任务启动时刻 : 2025-04-03 20:04:41
任务结束时刻 : 2025-04-03 20:04:51
任务总计耗时 : 10s
任务平均流量 : 2B/s
记录写入速度 : 0rec/s
读出记录总数 : 100
读写失败总数 : 0
