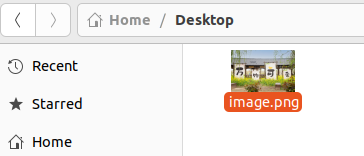

1.先将图片放到桌面上
2.打开终端ctrl+alt+T，查看自己是否已安装opencv
3.创建工作环境
4.进入工作目录并创建ROS2包添加OpenCV依赖项

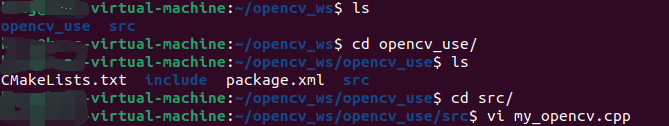

5.进入/home/kong/opencv_ws/opencv_use/src目录创建.cpp文件并编辑
6.代码如下
my_opencv.cpp
#include <cstdio>
#include <opencv2/opencv.hpp>using namespace cv;int main(int argc, char ** argv)
{(void) argc;(void) argv;Mat src = imread("/home/kong/Desktop/image.png");if(src.empty()){printf("无法读取图片，请检查图片路径是否正确。\n");}imshow("src",src);waitKey(0);printf("hello world opencv_use package\n");return 0;
}
CMakeLists.txt
cmake_minimum_required(VERSION 3.8)
project(opencv_use)if(CMAKE_COMPILER_IS_GNUCXX OR CMAKE_CXX_COMPILER_ID MATCHES "Clang")add_compile_options(-Wall -Wextra -Wpedantic)
endif()# find dependencies
find_package(ament_cmake REQUIRED)
find_package(rclcpp REQUIRED)
find_package(OpenCV REQUIRED)
find_package(sensor_msgs REQUIRED)
find_package(cv_bridge REQUIRED)
find_package(image_transport REQUIRED)
include_directories(${OpenCV_INCLUDE_DIRS})add_executable(my_opencv src/my_opencv.cpp)
target_link_libraries(my_opencv ${OpenCV_LIBRARIES})
target_include_directories(my_opencv PUBLIC$<BUILD_INTERFACE:${CMAKE_CURRENT_SOURCE_DIR}/include>$<INSTALL_INTERFACE:include>)
target_compile_features(my_opencv PUBLIC c_std_99 cxx_std_17) # Require C99 and C++17
ament_target_dependencies(my_opencv"rclcpp""OpenCV""sensor_msgs""cv_bridge""image_transport"
)install(TARGETS my_opencvDESTINATION lib/${PROJECT_NAME})if(BUILD_TESTING)find_package(ament_lint_auto REQUIRED)# the following line skips the linter which checks for copyrights# comment the line when a copyright and license is added to all source filesset(ament_cmake_copyright_FOUND TRUE)# the following line skips cpplint (only works in a git repo)# comment the line when this package is in a git repo and when# a copyright and license is added to all source filesset(ament_cmake_cpplint_FOUND TRUE)ament_lint_auto_find_test_dependencies()

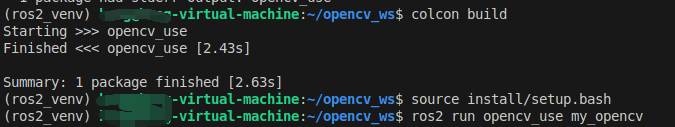

endif()ament_package()7.编译运行
现象
