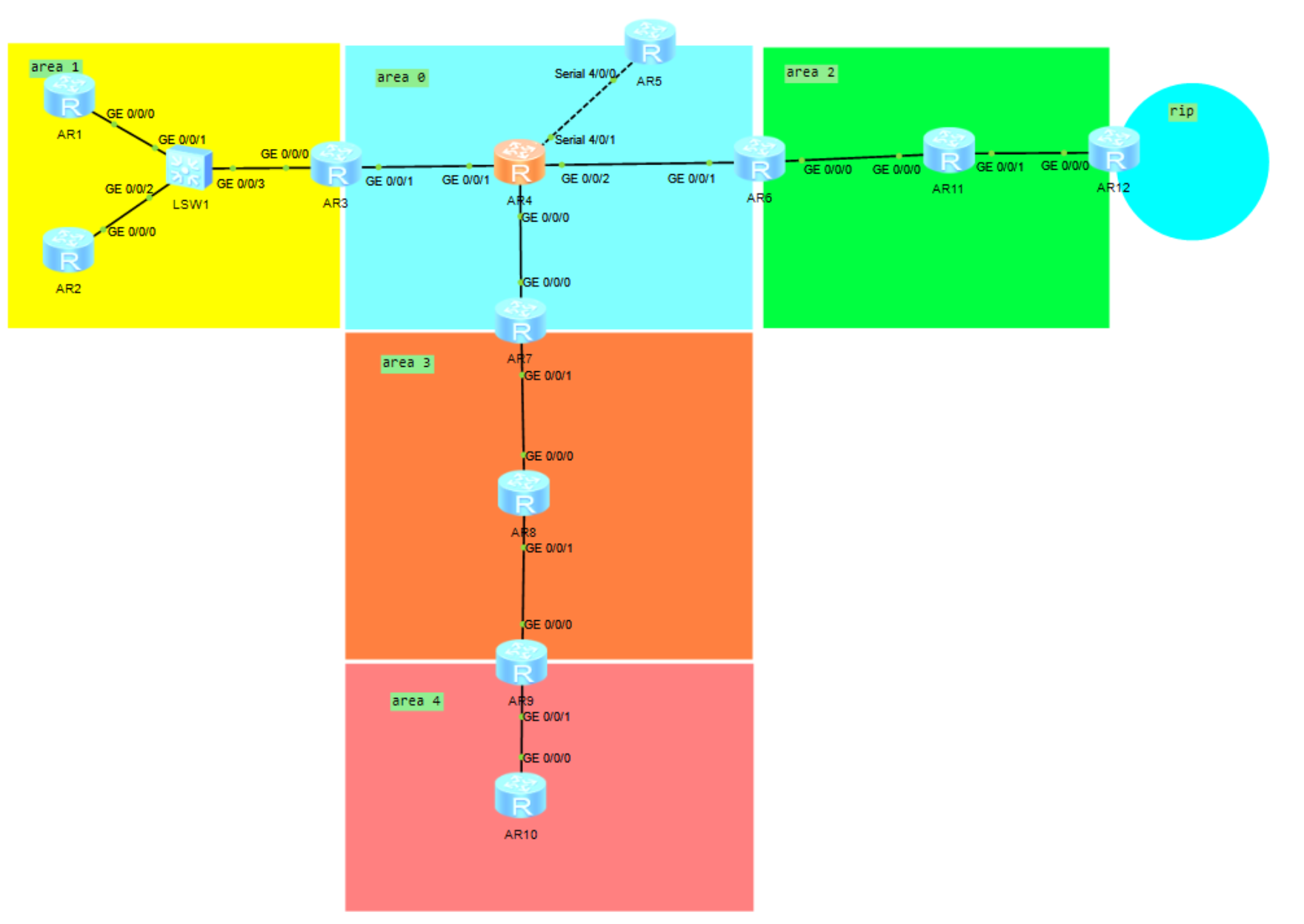

一、拓扑图

二、实验要求

1、R5为ISP,其上只能配置IP地址;R4作为企业边界路由器，~~出口公网地址需要通过PPP协议获取,并进行chap认证。~~
2、整个OSPF环境IP基于172.16.0.0/16划分;

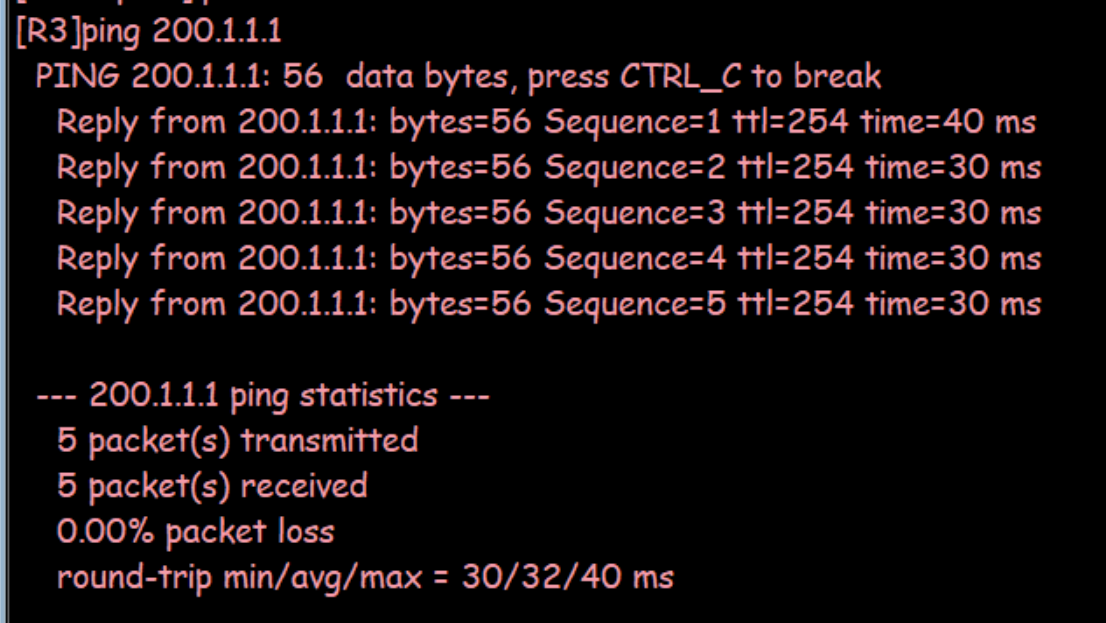

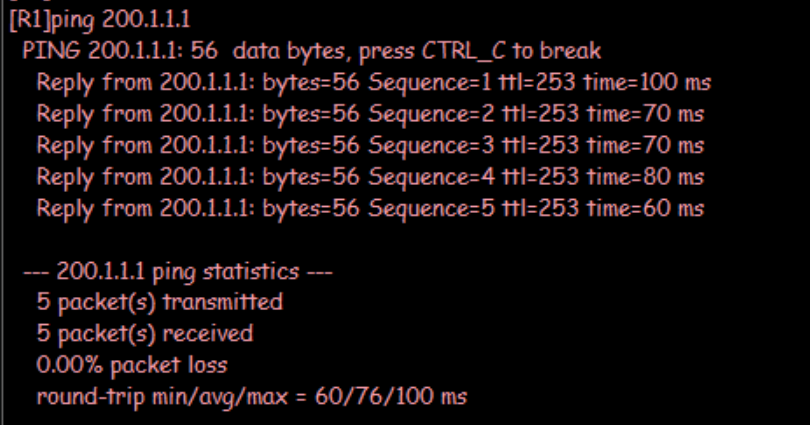

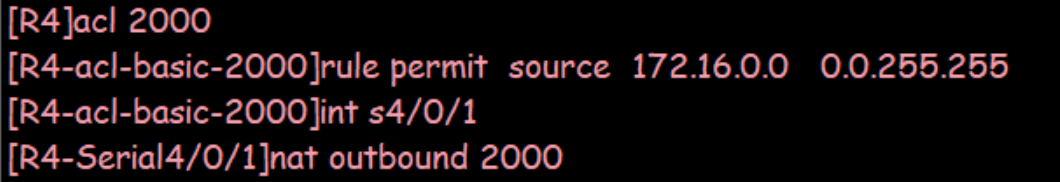

3、所有设备均可访问R5的环回;
4、减少LSA的更新量,加快收敛,保障更新安全;

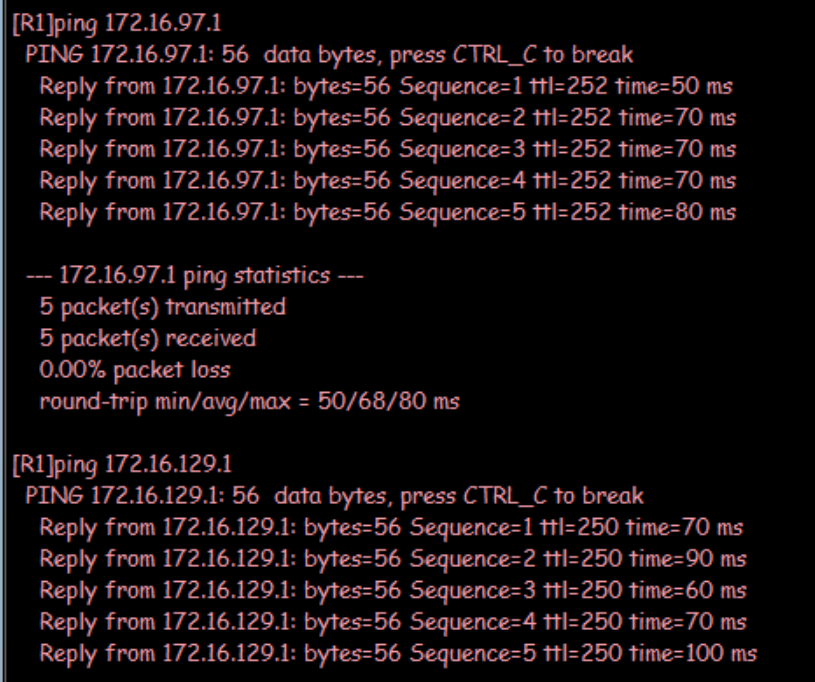

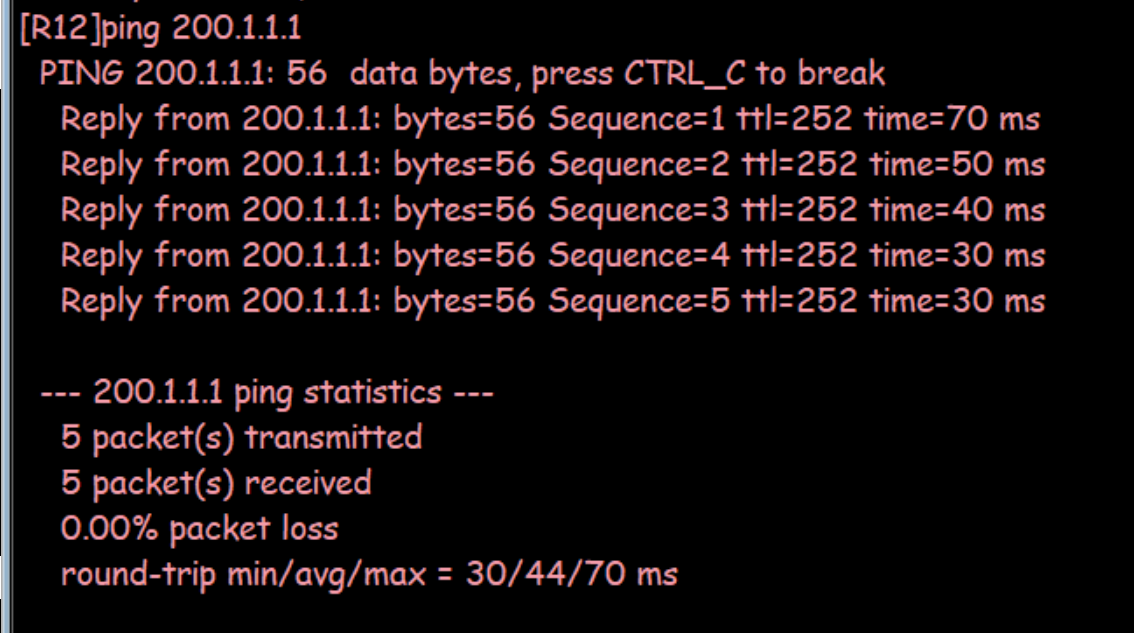

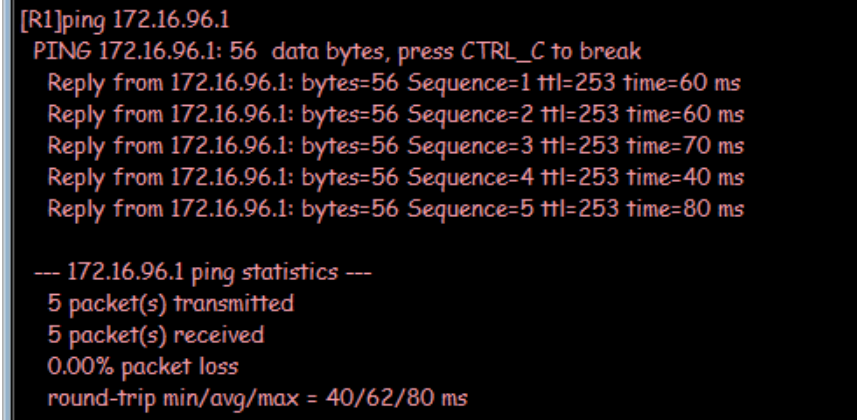

5、全网可达

三、具体配置

1、配IP地址

R1：

[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 172.16.35.1 29
Apr 16 2025 19:46:28-08:00 R1 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R1-GigabitEthernet0/0/0]int l0
[R1-LoopBack0]ip add 172.16.32.1 24

R2：

[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip add 172.16.35.2 29
Apr 16 2025 19:52:04-08:00 R2 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R2-GigabitEthernet0/0/0]int l0
[R2-LoopBack0]ip add 172.16.33.1 24
[R2-LoopBack0]q

R3：

[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip add 172.16.35.3 29
[R3-GigabitEthernet0/0/0]int g0/0/1
[R3-GigabitEthernet0/0/1]ip add 172.16.0.1 30
[R3-GigabitEthernet0/0/1]int l0
[R3-LoopBack0]ip add 172.16.34.1 24
[R3-LoopBack0]q

R4：

[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]ip add 172.16.0.9 30
Apr 16 2025 19:56:26-08:00 R4 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R4-GigabitEthernet0/0/0]int g0/0/1
[R4-GigabitEthernet0/0/1]ip add 172.16.0.2 30
[R4-GigabitEthernet0/0/1]
Apr 16 2025 19:56:52-08:00 R4 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R4-GigabitEthernet0/0/1]int g0/0/2
[R4-GigabitEthernet0/0/2]ip add 172.16.0.5 30
[R4-GigabitEthernet0/0/2]
Apr 16 2025 19:57:16-08:00 R4 %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP
on the interface GigabitEthernet0/0/2 has entered the UP state.
[R4-GigabitEthernet0/0/2]int s4/0/1
[R4-Serial4/0/1]ip add 45.0.0.1 30
[R4-Serial4/0/1]q

R5：

[R5]int s4/0/0
[R5-Serial4/0/0]ip add 45.0.0.2 30
[R5-Serial4/0/0]
Apr 16 2025 19:59:52-08:00 R5 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol PPP
IPCP on the interface Serial4/0/0 has entered the UP state.
[R5-Serial4/0/0]int l0
[R5-LoopBack0]ip add 200.1.1.1 24
[R5-LoopBack0]q
[R5]

R6：

[R6]int g0/0/0
[R6-GigabitEthernet0/0/0]ip add 172.16.66.1 30
Apr 16 2025 20:01:12-08:00 R6 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R6-GigabitEthernet0/0/0]int g0/0/1
[R6-GigabitEthernet0/0/1]ip add 172.16.0.6 30
Apr 16 2025 20:01:30-08:00 R6 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R6-GigabitEthernet0/0/1]int l0
[R6-LoopBack0]ip add 172.16.64.1 24
[R6-LoopBack0]q

R7：

[R7]int g0/0/0
[R7-GigabitEthernet0/0/0]ip add 172.16.0.10 30
Apr 16 2025 20:03:06-08:00 R7 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R7-GigabitEthernet0/0/0]int g0/0/1
[R7-GigabitEthernet0/0/1]ip add 172.16.98.1 30
Apr 16 2025 20:03:30-08:00 R7 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R7-GigabitEthernet0/0/1]int l0
[R7-LoopBack0]ip add 172.16.96.1 24
[R7-LoopBack0]q

R8：

[R8]int g0/0/0
[R8-GigabitEthernet0/0/0]ip add 172.16.98.2 30
Apr 16 2025 20:04:53-08:00 R8 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R8-GigabitEthernet0/0/0]int g0/0/1
[R8-GigabitEthernet0/0/1]ip add 172.16.98.5 30
Apr 16 2025 20:05:13-08:00 R8 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R8-GigabitEthernet0/0/1]int l0
[R8-LoopBack0]ip add 172.16.97.1 24
[R8-LoopBack0]q

R9：

[R9]int g0/0/0
[R9-GigabitEthernet0/0/0]ip add 172.16.98.6 30
Apr 16 2025 20:06:11-08:00 R9 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R9-GigabitEthernet0/0/0]int g0/0/1
[R9-GigabitEthernet0/0/1]ip add 172.16.130.1 30
Apr 16 2025 20:06:38-08:00 R9 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R9-GigabitEthernet0/0/1]int l0
[R9-LoopBack0]ip add 172.16.128.1 24
[R9-LoopBack0]q

R10：

[R10]int g0/0/0
[R10-GigabitEthernet0/0/0]ip add 172.16.130.2 30
Apr 16 2025 20:07:42-08:00 R10 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R10-GigabitEthernet0/0/0]int l0
[R10-LoopBack0]ip add 172.16.129.1 24
[R10-LoopBack0]q

R11：

[R11]int g0/0/0
[R11-GigabitEthernet0/0/0]ip add 172.16.66.2 30
Apr 16 2025 20:08:44-08:00 R11 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R11-GigabitEthernet0/0/0]int g0/0/1
[R11-GigabitEthernet0/0/1]ip add 172.16.66.5 30
Apr 16 2025 20:09:05-08:00 R11 %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP
on the interface GigabitEthernet0/0/1 has entered the UP state.
[R11-GigabitEthernet0/0/1]int l0
[R11-LoopBack0]ip add 172.16.65.1 24
[R11-LoopBack0]q

R12：

[R12]int g0/0/0
[R12-GigabitEthernet0/0/0]ip add 172.16.66.6 30
Apr 16 2025 20:10:05-08:00 R12 %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP
on the interface GigabitEthernet0/0/0 has entered the UP state.
[R12-GigabitEthernet0/0/0]int l0
[R12-LoopBack0]ip add 10.1.1.1 24
[R12-LoopBack0]int l1
[R12-LoopBack1]ip add 10.1.2.1 24
[R12-LoopBack1]q

2、OSPF

R1：

[R1]ospf router-id 1.1.1.1
[R1-ospf-1]a 1
[R1-ospf-1-area-0.0.0.1]network 172.16.32.1 0.0.0.0
[R1-ospf-1-area-0.0.0.1]network 172.16.35.1 0.0.0.0
[R1-ospf-1-area-0.0.0.1]q
R2：

[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]a 1
[R2-ospf-1-area-0.0.0.1]network 172.16.33.1 0.0.0.0
[R2-ospf-1-area-0.0.0.1]network 172.16.35.2 0.0.0.0
[R2-ospf-1-area-0.0.0.1]q
R3：

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]a 1
[R3-ospf-1-area-0.0.0.1]network 172.16.35.3 0.0.0.0
[R3-ospf-1-area-0.0.0.1]q
[R3-ospf-1]a 0
[R3-ospf-1-area-0.0.0.0]network 172.16.0.1 0.0.0.0
[R3-ospf-1-area-0.0.0.0]q

R4：

[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]a 0
[R4-ospf-1-area-0.0.0.0]network 172.16.0.2 0.0.0.0
[R4-ospf-1-area-0.0.0.0]network 172.16.0.5 0.0.0.0
[R4-ospf-1-area-0.0.0.0]network 172.16.0.9 0.0.0.0
[R4-ospf-1-area-0.0.0.0]

R6：

[R6]ospf 1 router-id 6.6.6.6
[R6-ospf-1]a 0
[R6-ospf-1-area-0.0.0.0]network 172.16.0.6 0.0.0.0
[R6-ospf-1-area-0.0.0.0]q
[R6-ospf-1]a 2
[R6-ospf-1-area-0.0.0.2]netw
[R6-ospf-1-area-0.0.0.2]network 172.16.66.1 0.0.0.0
[R6-ospf-1-area-0.0.0.2]network 172.16.64.1 0.0.0.0
[R6-ospf-1-area-0.0.0.2]q

R7：

[R7]ospf 1 router-id 7.7.7.7
[R7-ospf-1]a 0
[R7-ospf-1-area-0.0.0.0]network 172.16.0.10 0.0.0.0
[R7-ospf-1-area-0.0.0.0]q
[R7-ospf-1]a 3
[R7-ospf-1-area-0.0.0.3]network 172.16.96.1 0.0.0.0
[R7-ospf-1-area-0.0.0.3]network 172.16.98.1 0.0.0.0

R8：

[R8]ospf 1 router-id 8.8.8.8
[R8-ospf-1]a 3
[R8-ospf-1-area-0.0.0.3]netw
[R8-ospf-1-area-0.0.0.3]network 172.16.98.2 0.0.0.0
[R8-ospf-1-area-0.0.0.3]network 172.16.97.1 0.0.0.0
[R8-ospf-1-area-0.0.0.3]network 172.16.98.5 0.0.0.0
[R8-ospf-1-area-0.0.0.3]q

R9：

[R9]ospf 1 router-id 9.9.9.9
[R9-ospf-1]a 3
[R9-ospf-1-area-0.0.0.3]network 172.16.98.6 0.0.0.0
[R9-ospf-1-area-0.0.0.3]q
[R9-ospf-1]q
[R9]ospf 2 router-id 9.9.9.9
[R9-ospf-2]a 4
[R9-ospf-2-area-0.0.0.4]network 172.16.128.1 0.0.0.0
[R9-ospf-2-area-0.0.0.4]network 172.16.130.1 0.0.0.0
[R9-ospf-2-area-0.0.0.4]q

R10：

[R10]ospf 1 router-id 10.10.10.10
[R10-ospf-1]a 4
[R10-ospf-1-area-0.0.0.4]network 172.16.129.1 0.0.0.0
[R10-ospf-1-area-0.0.0.4]network 172.16.130.2 0.0.0.0

R11：

[R11]ospf 1 router-id 11.11.11.11
[R11-ospf-1]a 2
[R11-ospf-1-area-0.0.0.2]network 172.16.66.2 0.0.0.0
[R11-ospf-1-area-0.0.0.2]network 172.16.65.1 0.0.0.0
[R11-ospf-1-area-0.0.0.2]network 172.16.66.5 0.0.0.0

R12：

[R12]ospf 1 router-id 12.12.12.12
[R12-ospf-1]a 2
[R12-ospf-1-area-0.0.0.2]network 172.16.66.6 0.0.0.0
[R12-ospf-1-area-0.0.0.2]q
[R12-ospf-1]q
[R12]rip 1
[R12-rip-1]version 2
[R12-rip-1]network 10.0.0.0
[R12-rip-1]q

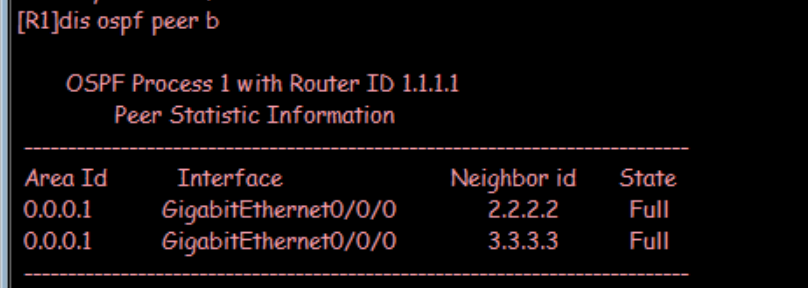

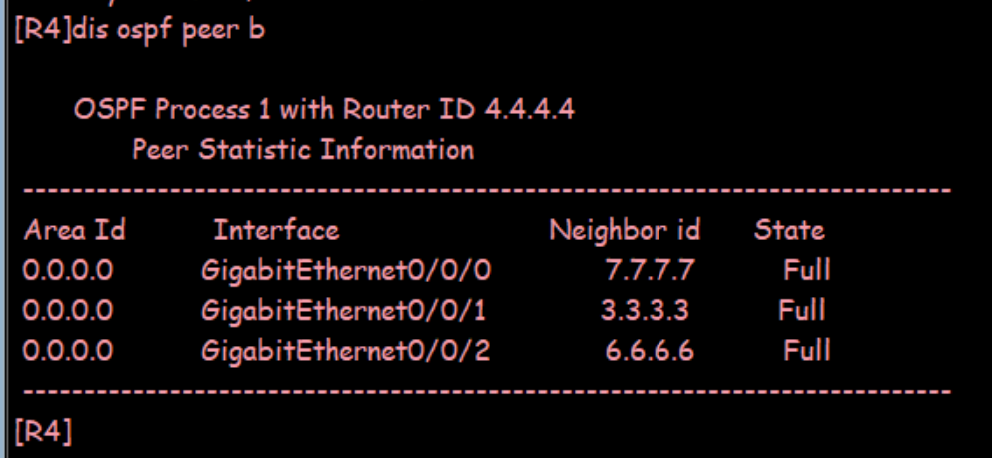

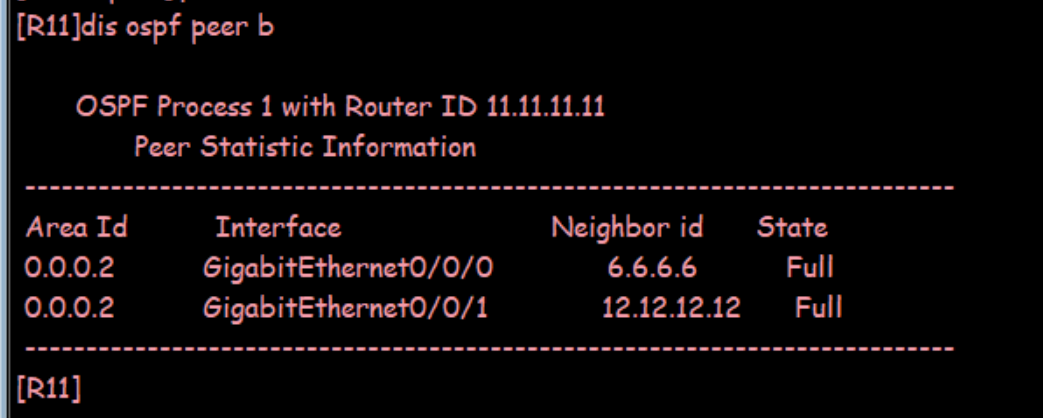

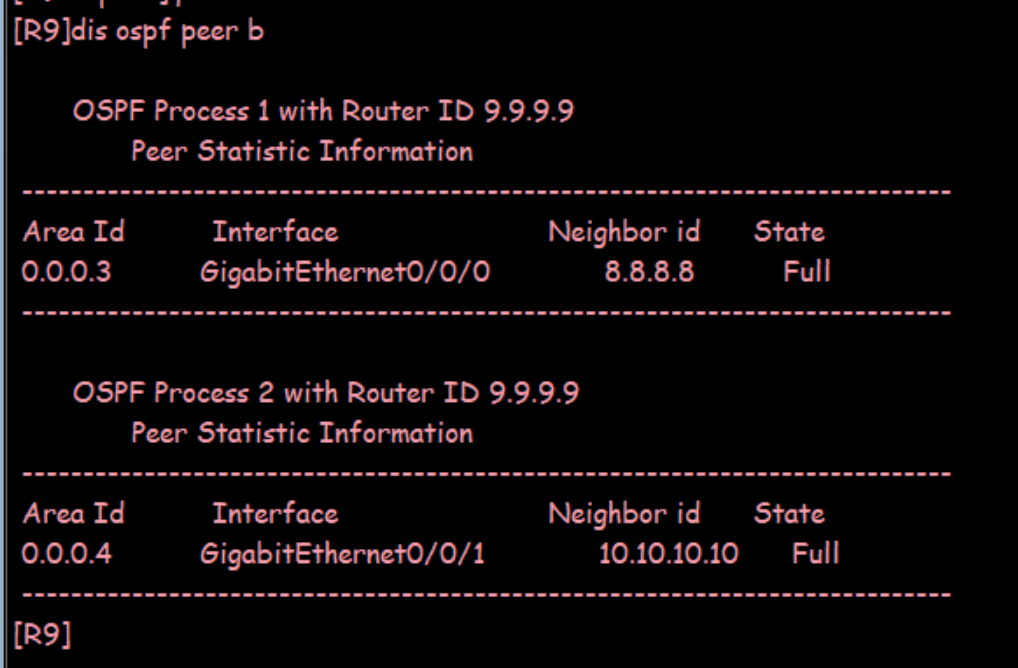

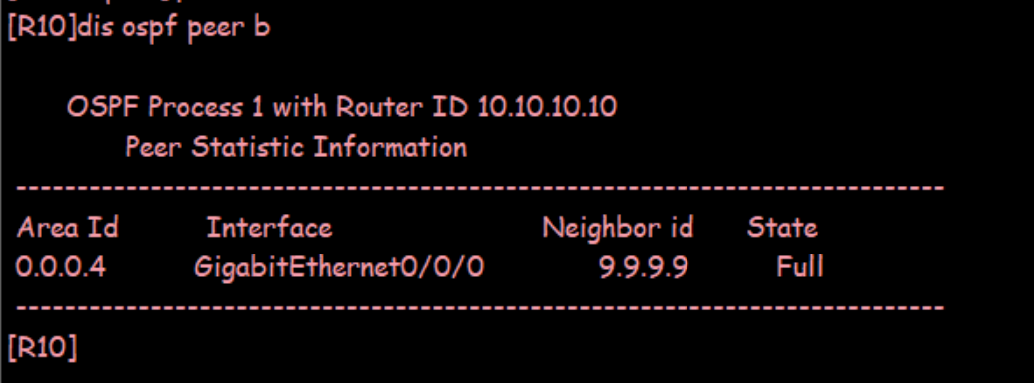

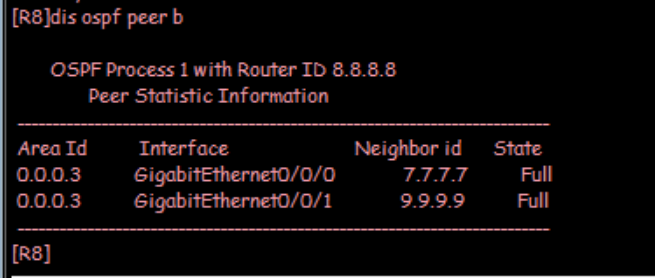

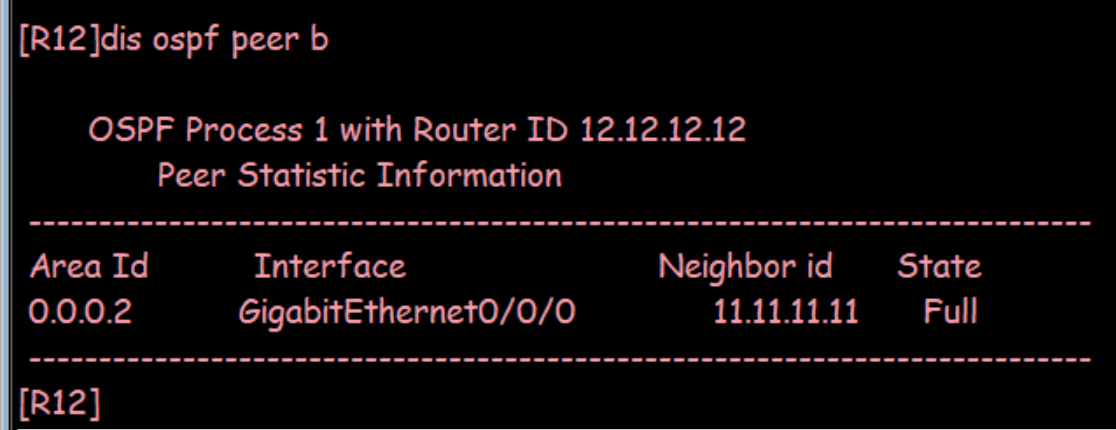

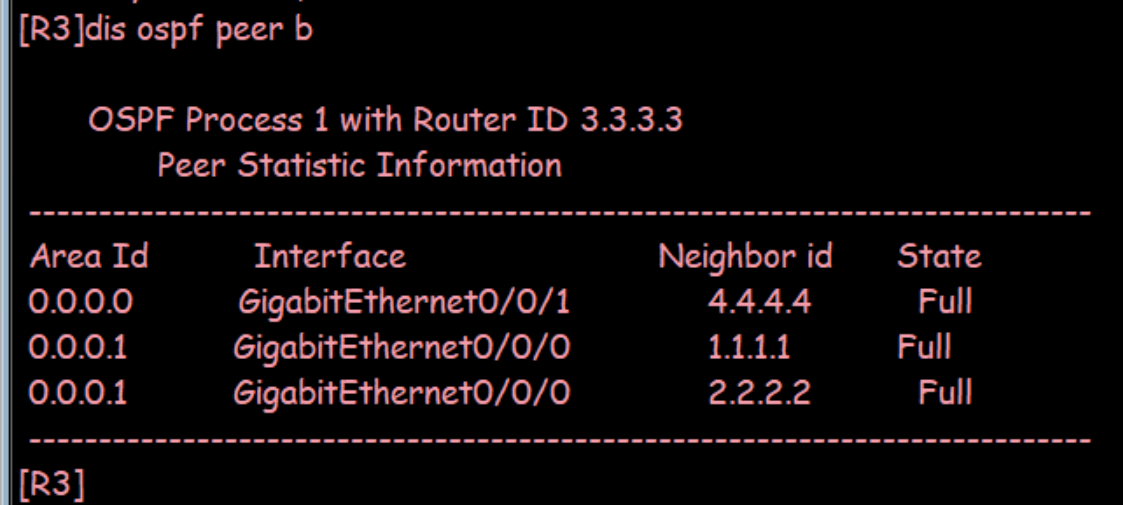

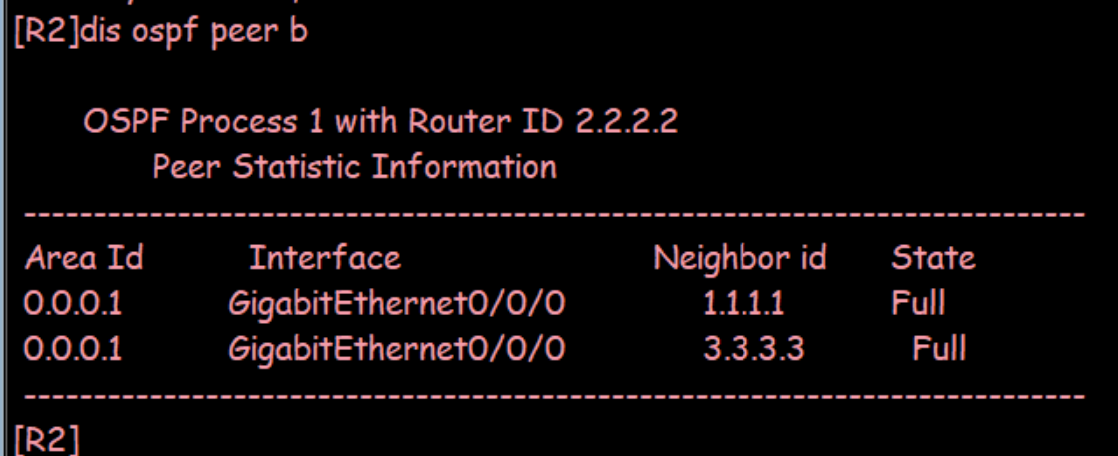

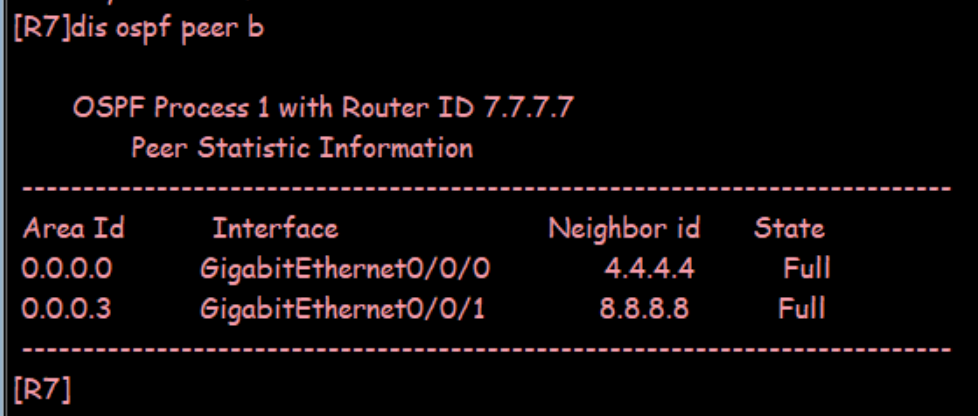

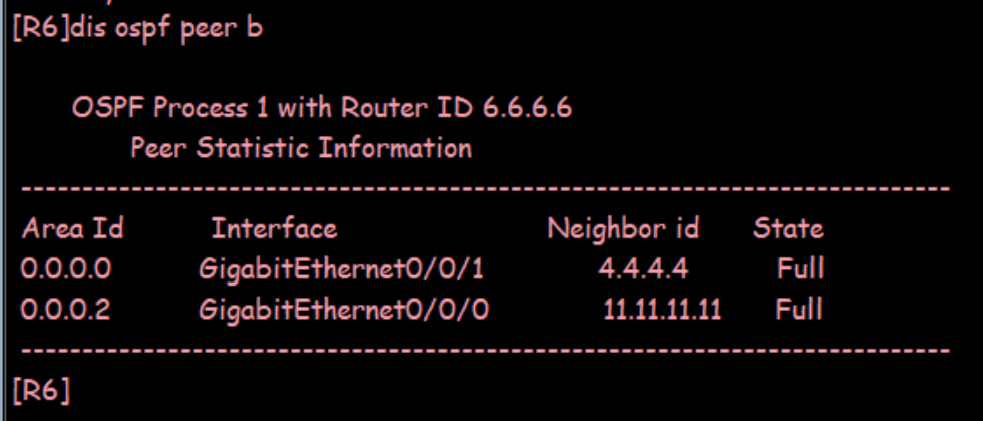

邻居情况：

3、OSPF优化

一、路由汇总

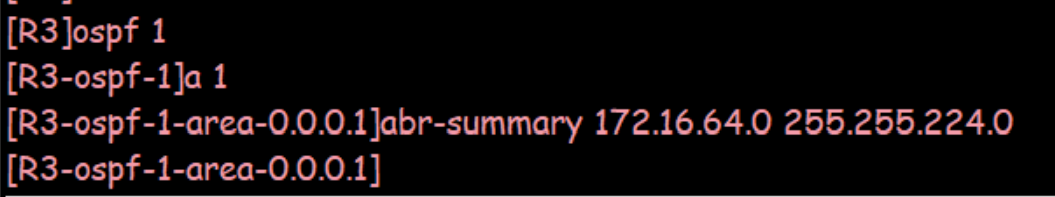

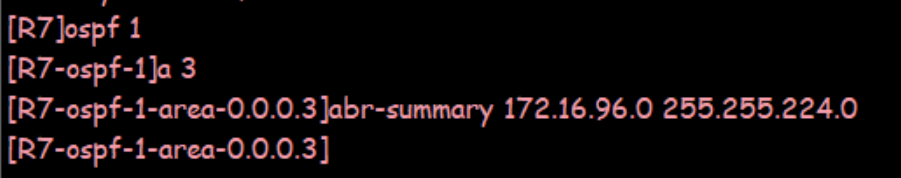

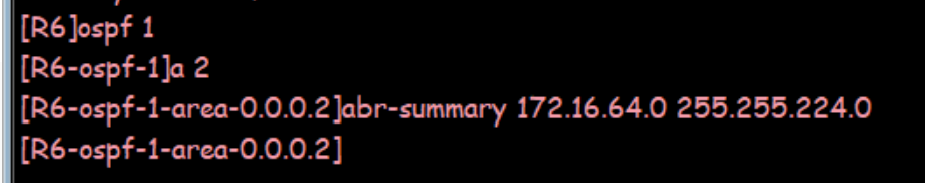

通过在不同区域的边界路由器（ABR）上进行路由汇总，减少了不同区域之间传播的路由条目数量，提高了路由效率和网络的稳定性。这里 R3 和 R6 对 172.16.64.0/19 进行汇总，R7 对 172.16.96.0/19 进行汇总。

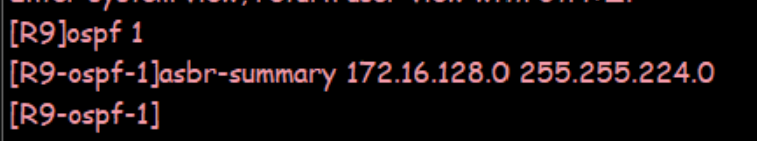

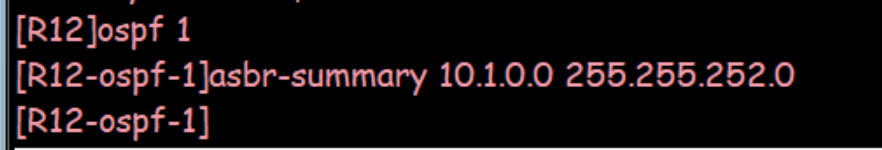

通过在不同的 ASBR上进行域外路由汇总，减少了 OSPF 域内传播的外部路由条目数量，提高了路由查找效率，也增强了网络的稳定性。R12 对 10.1.0.0/22 进行汇总，R9 对 172.16.128.0/19 进行汇总

二、特殊区域

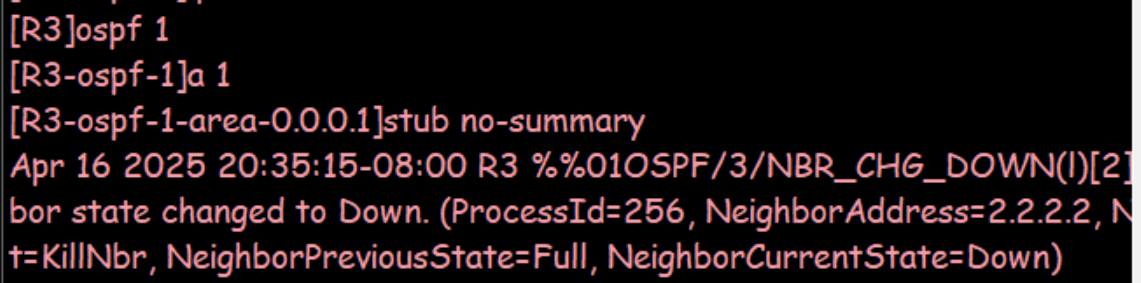

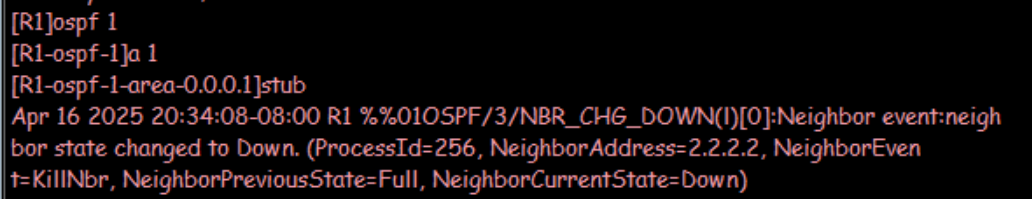

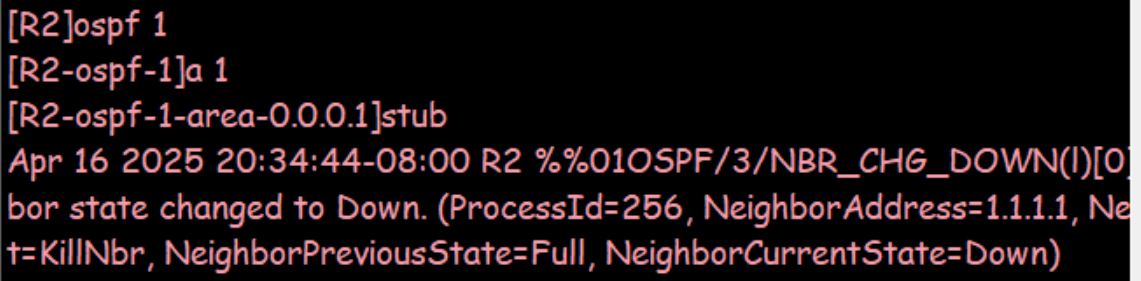

区域 1（末梢区域配置）

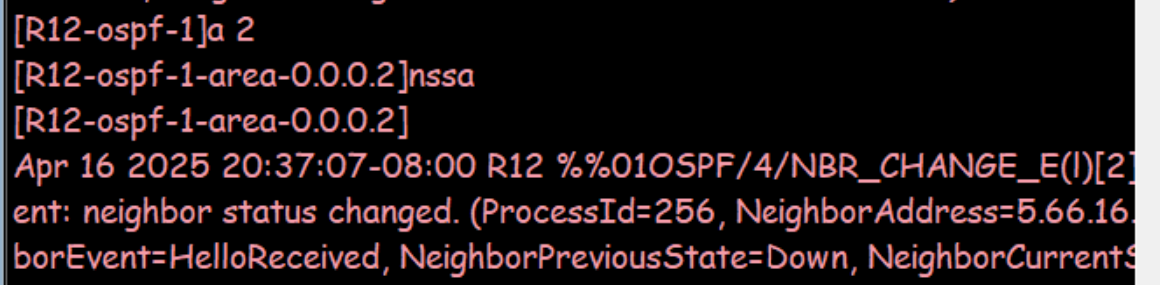

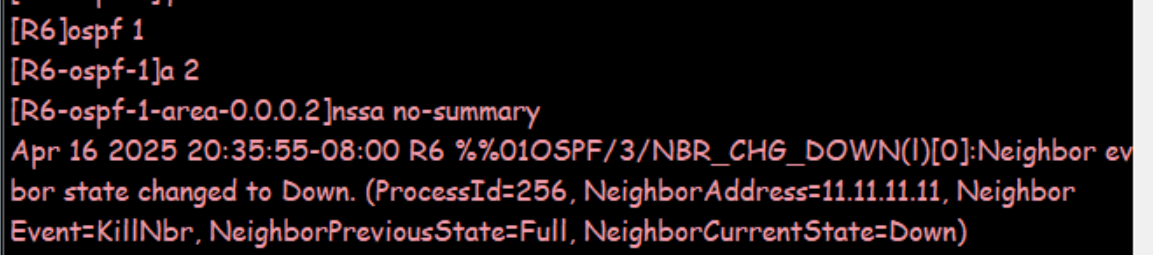

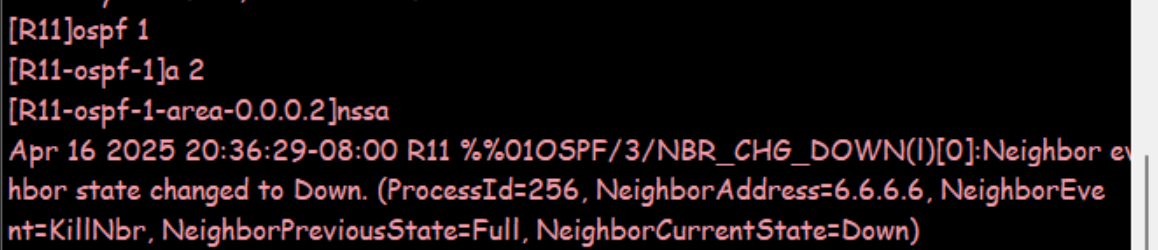

区域 2（非纯末梢区域配置）

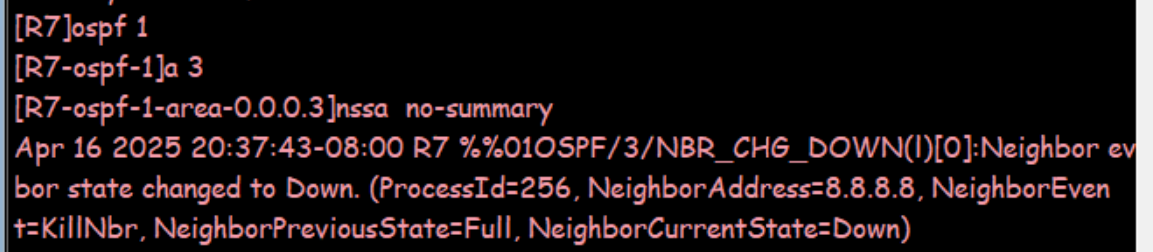

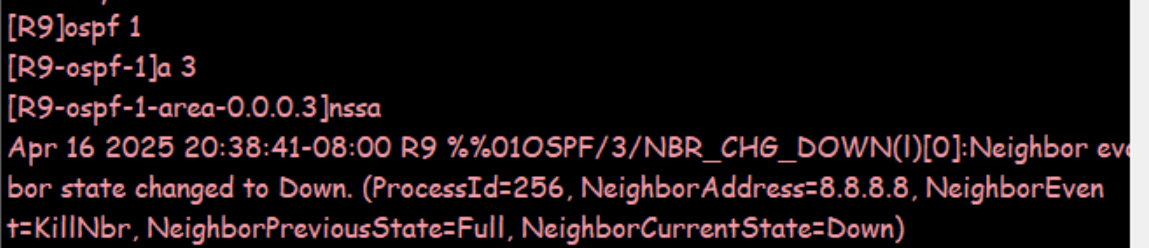

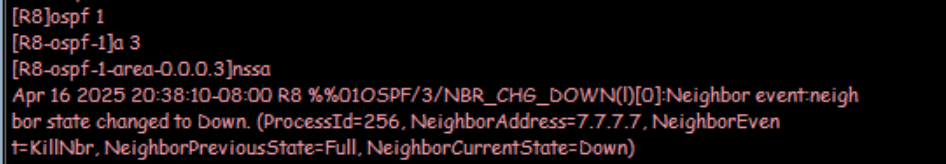

区域 3（非纯末梢区域配置）

4、缺省

[R4]ip route-static 0.0.0.0 0 45.0.0.2

[R9]ospf 2
[R9-ospf-2]default-route-advertise
[R4]ospf 1
[R4-ospf-1]default-route-advertise

[R9]ospf 1
[R9-ospf-1]import-route ospf 2
[R9-ospf-1]q
[R9]ospf 2
[R9-ospf-2]import-route ospf 1
[R9-ospf-2]

[R12]ospf 1
[R12-ospf-1]import-route rip
[R12-ospf-1]q

5、加快收敛

这里没有截图，有提示语刷新

[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ospf network-type p2mp
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ospf network-type p2mp
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ospf network-type p2mp
[r3]int g0/0/1
[r3-GigabitEthernet0/0/1]ospf network-type p2p
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]ospf network-type p2p
[r4]int g0/0/2
[r4-GigabitEthernet0/0/2]ospf network-type p2p
[r6]int g0/0/1
[r6-GigabitEthernet0/0/1]ospf network-type p2p
[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ospf network-type p2p
[r7]int g0/0/0
[r7-GigabitEthernet0/0/0]ospf network-type p2p
[r6]int g0/0/0
[r6-GigabitEthernet0/0/0]ospf network-type p2p
[r11]int g0/0/0
[r11-GigabitEthernet0/0/0]ospf network-type p2p
[r11-GigabitEthernet0/0/0]int g0/0/1
[r11-GigabitEthernet0/0/1]ospf network-type p2p
[r12]int g0/0/0
[r12-GigabitEthernet0/0/0]ospf network-type p2p
[r7]int g0/0/1
[r7-GigabitEthernet0/0/1]ospf network-type p2p
[r8]int g0/0/0
[r8-GigabitEthernet0/0/0]ospf network-type p2p
[r8-GigabitEthernet0/0/0]int g0/0/1
[r8-GigabitEthernet0/0/1]ospf network-type p2p
[r9]int g0/0/0
[r9-GigabitEthernet0/0/0]ospf network-type p2p
[r9]int g0/0/1
[r9-GigabitEthernet0/0/1]ospf network-type p2p
[r10]int g0/0/0
[r10-GigabitEthernet0/0/0]ospf network-type p2p
